Brand Name : | PRM |
Model Number : | GR1,GR2,GR5,GR7,GR9,GR12 |
Certification : | ISO9001 |
Price : | $12~28/kg |
Payment Terms : | T/T |
Supply Ability : | 50ton/month |
Delivery Time : | 5~7days |
Material:titanium
Grade:GR1,GR5;TA1,TA2;TC1,TC2,TC4 etc.
Wall thickness:50mm-420mm,customer customize
Length:customer customize
Certificate:ISO9001:2008
Melting point:1668 °C
Boiling Point:3560 °C
Density:4.51g/cm3
Standard: ASTM B338,ASTM F67,ASTM F136,STM B337,ASTM B862
Surface treatment: anodizing, polishing, powder coating, electrophoresis, sandblasting, coating, etc.
Inspection:Eddy current flaw detection,Hydrostaticte
Grade | Physical properties | ||||
Tensile Strength | Yield Strength Min.(0.2%,) | Elongation2in or 50mm Min.(%) | |||
Ksi | Mpa | Ksi | Mpa | ||
Gr1 | 35 | 240 | 20 | 138 | 24 |
Gr2 | 50 | 345 | 40 | 275 | 20 |
Gr5 | 130 | 895 | 120 | 828 | 10 |
Gr7 | 50 | 345 | 40 | 275 | 20 |
Gr9 | 90 | 620 | 70 | 483 | 15 |
Gr11 | 35 | 240 | 20 | 138 | 24 |
Gr12 | 70 | 483 | 50 | 345 | 18 |
Gr16 | 50 | 345 | 40 | 275 | 20 |
Gr23 | 120 | 828 | 110 | 759 | 10 |

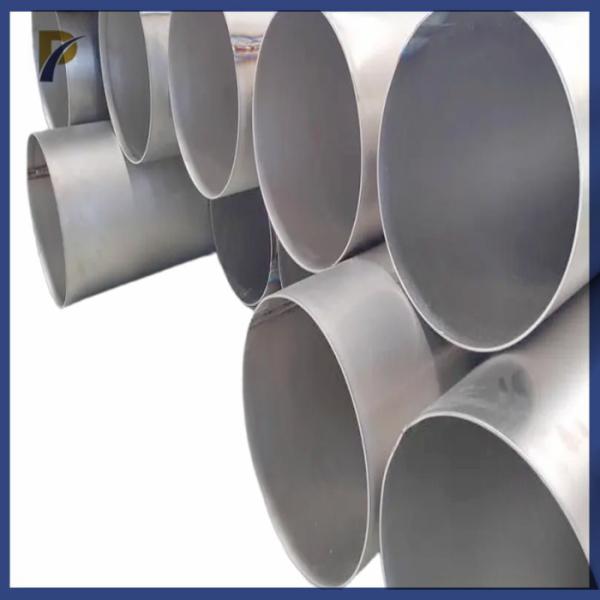

Titanium welded pipes are used in the following areas:
◆ Chlorination systems
◆ Flue gas scrubbers
◆ Export ducts and chimney linings for power plants, pulp and paper
bleaching plants, sulfur dioxide scrubbers, and welding cladding of
metals with poor corrosion resistance
◆ Acid production and pickling systems
◆ The pharmaceutical industry uses alloy pipe fittings and piping
to avoid pollution caused by failures due to corrosion
◆ Cellophane manufacturing
◆ Chlorination systems
◆ Pesticide production
◆ Incineration and scrubbing systems
◆ Equipment in chemical processing industries such as flue gas
scrubbers, chlorination systems, sulfur dioxide scrubbers, pulp and
paper bleaching plants, pickling systems and nuclear fuel
reprocessing
◆ Wastewater treatment
◆ Pollution control chimney linings, ducts, dampers, scrubbers,
chimney gas reheaters, fans and fan housings
◆ Flue gas desulfurization systems
◆ Chemical processing components such as heat exchangers, reaction
vessels, evaporators, etc. Transportation pipelines
◆ Sour gas wells
◆ Pulp and paper production
◆ Waste treatment
◆ Pharmaceutical and food processing equipment
![]() |
