    Tungsten Glass Crucible Furnace Sintered 99.95% Crucible For Glass Melting Sintered Tungsten Crucible By Isostatic Press

    Ask Lasest Price
    Brand Name : PRM
    Model Number : custom
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : T/T
    Supply Ability : 200pcs/month
    Delivery Time : 10~15work days
    • Product Details
    • Company Profile

    Tungsten Glass Crucible Furnace Sintered 99.95% Crucible For Glass Melting Sintered Tungsten Crucible By Isostatic Press

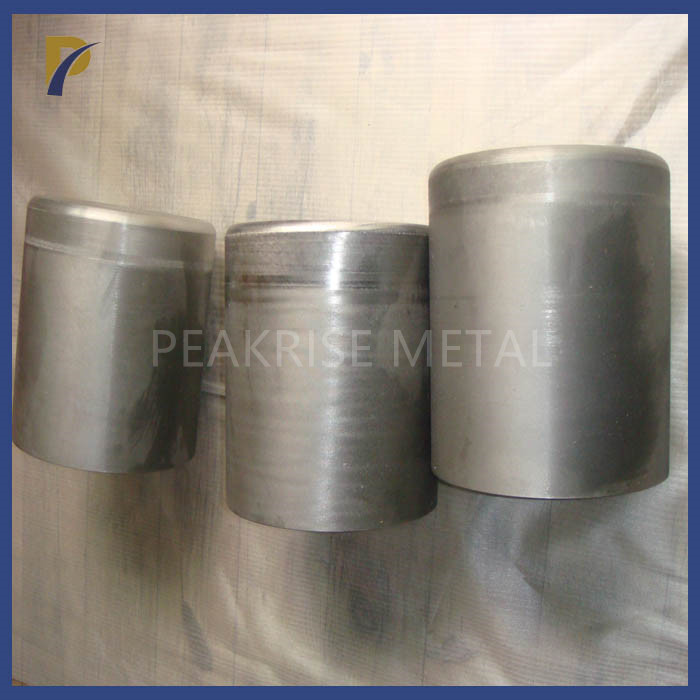

    Crucible Made Of Sintered 99.95% Tungsten For Sapphire Crystal Furnace


    1.Sintered 99.95% Tungsten Crucible Measurements and Tolerances for Sapphire Crystal Furnace:


    Tungsten crucible for Sapphire crystal growthing furnace


    Unit:mm

    Delivery conditionSpecificationToleranceThicknessRoughness (μm)
    DiameterHeightDiameterHeight
    Sinter10~70010~1000±5.0±5.05~30
    Finished sinter10~65010~850±0.5±1.07~25<2.5

    Customized sizes can be produced based on customer needs.



    2.Physical and chemical properties of Sintered 99.95% Tungsten Crucible For Sapphire Crystal Furnace:


    1). Purity :W≥99.95%;

    2). Density:≥18.2g/cm3;

    3 ).Application temperature environment:2300℃.


    Product NameTungsten crucible
    Material CompositionTungsten
    Purity99.95%
    Density≥17.8g/cm3
    Using temperaturewithin2000℃

    Highest temperature

    Tolerance

    2400℃

    ±0.5mm

    Smooth degreeRa≤3.2
    Quantitative analysis
    ElementSiAlFeBiMgPbNiMoCaP
    Concentration(%)0.0010.00050.0020.00010.00050.00010.0010.0020.00050.001
    ElementCONSbCu
    Concentration(%)0.0010.0030.00060.00060.0006
    Purity(Metallic Base) W99.95%

    3.Manufacturing process and equipment of Sintered 99.95% Tungsten Crucible:


    ItemProcessEquipmentQuality Check point
    1Tungsten powder1 Purity of tungsten powder
    2SievingHigh frequency vibrating screen2 Fsss,HB
    3Mixed powderV shape mixer3 Green strength
    4Isostatic pressingIsostatic pressing machine1 Measurement of rough-processed billet
    5Rough billet lathingCNC vertical turning machine2 Surface quality of rough-processed billet
    6IF sinteringIF induction sintering furnace1 Outside measurements of finished product
    7Competitive products lathingHigh-accuracy vertical turning machine2 Surface quality and roughness of finished product,density
    8Package3 Show certificate of quality

    4.Application of Sintered 99.95% Tungsten Crucible For Sapphire Crystal Furnace:


    Since the melting point of tungsten has reached 3410℃, tungsten crucible is widely applied in industry furnace such as sapphire growth furnace, quartz glass melting furnace, and a furnace for smelting rare earths. The tungsten crucible's operating environment has a temperature of more than 2000°C. For sapphire crystal growth furnace, high-purity, high- density, a tungsten crucible without an internal fracture that also has precise measurement and a smooth surface has a significant impact on the sapphire growing process's success ratio for seed growth, pulling crystal quality control, metamictization pot commitment, and service life.


    Tungsten crucible Liners are highly helpful in electron-beam evaporation because they frequently speed up the rate at which the material is being deposited and make switching between different evaporation materials easier. There are many sizes of Crucible Liners.
