    Diameter 5.0mm Tungsten Wire Electrode Cable Rope Properties Of Tungsten Wire For Vacuum Single Crystal Furnace

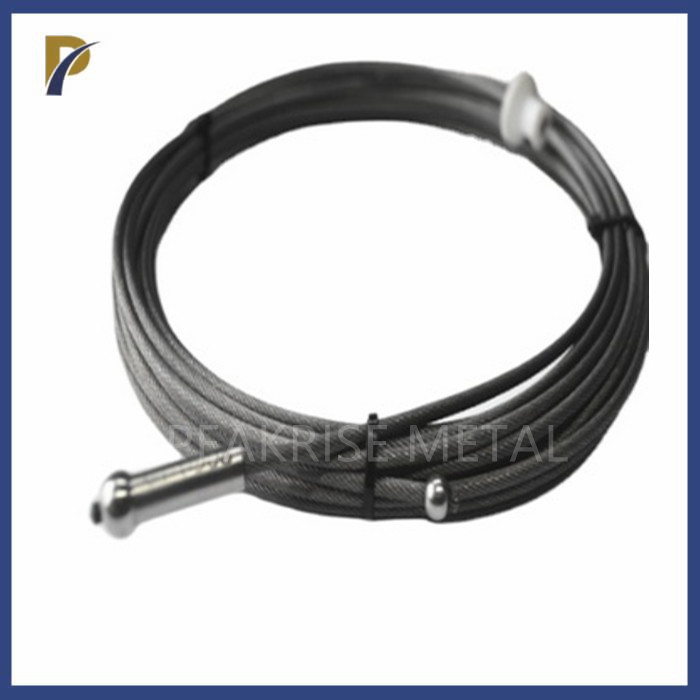

    Common Size Diameter 5.0mm Tungsten Wire Rope


    1. Information about 5.0mm diameter tungsten wire rope:


    Twisting scheelite wire, which has the properties of tungsten metal and the tensile performance of twisted wire, produces tungsten wire rope. Early tungsten wire rope specifications were 7*7*7, whereas today's specifications call for a winding procedure of 4*19*7. In China right now, the 19*7 standard specification is the most popular. High temperature resistance, wear resistance, and tensile strength are characteristics of tungsten wire rope. mostly utilized in the smelting, casting, single crystal furnace equipment, and sapphire crystal growth sectors. frequently used in conjunction with tungsten and molybdenum crucibles. The greatest diameter available on the market is found in 5.0 crystal pulling ropes.


    2. Diameter 5.0mm Tungsten Wire Rope Dimensions:


    Diameter D/mmLength L/mmStructure

    Normal temperature cut off load

    (N)

    High temperature cut off load

    (N)

    Common dia.ToleranceCommon LengthTolerance
    Φ2.5±0.10>4000±1519*764952684
    Φ3.0±0.10>4000±1519*782403042
    Φ3.5±0.10>4000±1519*7112494651
    Φ4±0.10>4000±1519*7152306308
    Φ4.5±0.10>4000±1519*7191457917
    Φ5.0±0.10>4000±1519*7215007520
    Φ6.0±0.10>4000±1519*72654010610

    Diameter 5.0mm Tungsten Wire Electrode Cable Rope Properties Of Tungsten Wire For Vacuum Single Crystal FurnaceDiameter 5.0mm Tungsten Wire Electrode Cable Rope Properties Of Tungsten Wire For Vacuum Single Crystal FurnaceDiameter 5.0mm Tungsten Wire Electrode Cable Rope Properties Of Tungsten Wire For Vacuum Single Crystal FurnaceDiameter 5.0mm Tungsten Wire Electrode Cable Rope Properties Of Tungsten Wire For Vacuum Single Crystal Furnace


    High temperature resistance, wear resistance, and tensile strength are characteristics of tungsten wire rope. The primary applications for it are in the casting, single crystal furnace equipment, and other smelting sectors. In China right now, 19*7 conventional buildings are frequently used.
