    Custom Stamping Tungsten Boat Special Shaped Tungsten Boats For Vacuum Coating Evaporation Industry

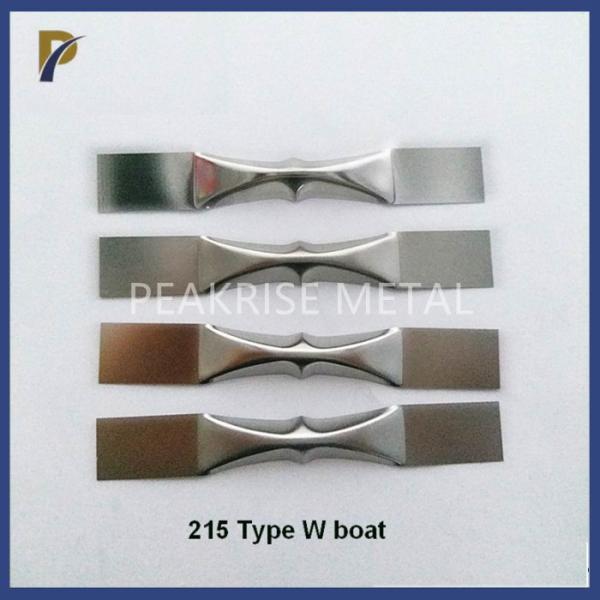

    Stamping Special-Shaped Tungsten Boat


    1. Description of Stamping Special-Shaped Tungsten Boat:


    The primary method of creating the stamping type tungsten boat is hot stamping the tungsten plate to cause plastic deformation. This particular form of tungsten boat is reasonably inexpensive and has several great qualities, including good electrical conductivity, thermal conductivity, high temperature resistance, wear resistance, and others. It is widely used in various vacuum coating industries such as video tube mirrors, electron beam painting, and household appliances.


    Special-shaped stamped tungsten boats are stamped and processed according to customer drawings.


    2. Size and Type of Stamping Special-Shaped Tungsten Boat:


    0.3

    Special-Shaped

    Tungsten Boat

    Custom Stamping Tungsten Boat Special Shaped Tungsten Boats For Vacuum Coating Evaporation Industry

    0.3*16*104:

    Depth of boat=12mm,

    Length of groove=50mm,

    Depth of groove=3.8mm,

    Bottom length=40mm,

    Width of bottom=10mm

    Bright

    0.3

    Special-Shaped

    Tungsten Boat


    Custom Stamping Tungsten Boat Special Shaped Tungsten Boats For Vacuum Coating Evaporation Industry

    0.3*18.8*100:

    Depth of boat=11mm,

    Bottom length=51mm,

    Length of groove=40mm,

    Width of groove=15mm,

    Depth of groove=3.3mm

    Length of groove bottom=32.5mm,

    Width of groove bottom=10mm

    Bright

    0.2

    Special-Shaped

    Tungsten Boat

    Custom Stamping Tungsten Boat Special Shaped Tungsten Boats For Vacuum Coating Evaporation Industry

    0.2*8*65:

    Length of groove=40mm,

    Depth of groove=1.2-1.3mm,

    Bottom length=30mm,

    Width of bottom=2mm

    Bright

    0.2,0.3

    Special-Shaped

    Tungsten Boat

    Custom Stamping Tungsten Boat Special Shaped Tungsten Boats For Vacuum Coating Evaporation Industry

    0.2/0.3*13*50.2:

    Length of groove=27mm,

    Depth of groove=3.2-3.3mm,

    Width of groove=13mm,

    Width of bottom=4mm

    Bright

    0.2

    Special-Shaped

    Tungsten Boat

    Custom Stamping Tungsten Boat Special Shaped Tungsten Boats For Vacuum Coating Evaporation Industry

    0.2*25*90:

    Length of groove=70mm,

    Depth of groove=6.1-6.2mm,

    Width of groove=15.5mm,

    Bottom length=45mm,

    Width of bottom=13mm

    Bright

    0.25

    Special-Shaped

    Tungsten Boat

    Custom Stamping Tungsten Boat Special Shaped Tungsten Boats For Vacuum Coating Evaporation IndustryAccording customer's drawingBright

    0.2

    Special-Shaped

    Tungsten Boat

    Custom Stamping Tungsten Boat Special Shaped Tungsten Boats For Vacuum Coating Evaporation IndustryAccording customer's drawingBright

    0.3

    Special-Shaped

    Tungsten Boat

    Custom Stamping Tungsten Boat Special Shaped Tungsten Boats For Vacuum Coating Evaporation IndustryAccording customer's drawingBright

    Above type and size for your reference, we can process special-shaped as per customer's drawing.
