    Welding Tungsten Boat Black Alkaline Washing Finished Tungsten Boat Welding By Tungsten Plates vacuum furnace industry

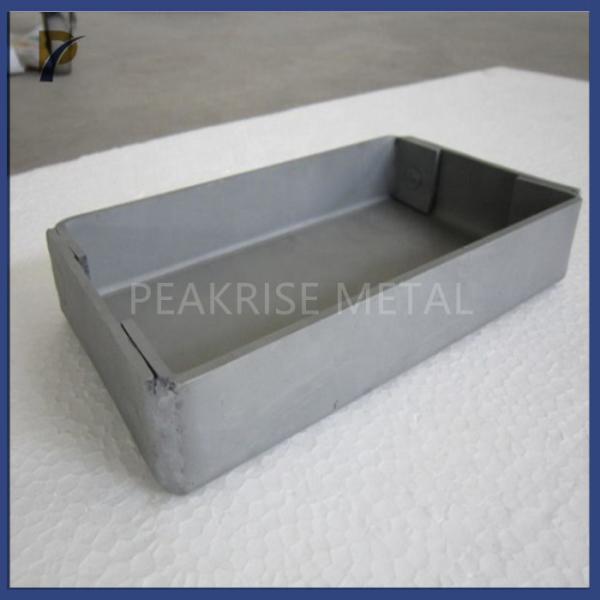

    Welding Tungsten Boat


    1. Description of Welding Tungstenn Boat:


    Heated tungsten boats, also known as welding tungsten boats, are made by high-temperature welding two tungsten plates together. The steam holes at the bottom of this form of tungsten boat are pretty loose and may be found all over it. The boat is also relatively dense. It has a high temperature tolerance of up to 2600 degrees. The size of this kind of tungsten boat is relatively enormous because the welded tungsten boat is created by fusing more than two tungsten plates.


    2. Size and physical characteristics of welding tungsten boats:


    Purity: min 99.95%

    Density: 19.3g/cm3

    Melting point: 3410

    Boiling point: about 5900

    Tolerance:+/-0.2mm



    Size according to customer's drawing.


    3. Chemical content of Welding Tungstenn Boat:(max. wt% )


    AlFeCaMgMoNiSiCNOW
    0.0020.0050.0030.0020.010.0030.0030.0050.0030.00599.95

    4.The Productive Process Of Tungsten Boat and Production Equipment.


    ItemProcessEquipmentQuality Check
    1PowderPurified furnaceGDMS
    2Powder pressingIsostatic pressing machineMeasurement of rough-processed
    3forgingHigh-accuracy forging machineDimension measurements for product
    4sinteringHigh temperature vacuum sintering furnaceDimension measurements for product
    5Final machiningHigh-accuracy turning machineSurface quality/ roughness and density
    6PakcingQuality Test Report

    5. Advantage of Welding Tungstenn Boat:


    The welded tungsten boat has a size that is relatively large and can be used to evaporate huge devices or a lot of materials since it is formed of five pieces of tungsten plates that have been joined together. Welded tungsten boats can save 10% to 20% on materials over riveted tungsten boats while also reducing labor-intensive procedures like scribing, drilling, and assembly. Additionally, using a welded structure allows you to choose your materials based on their intended usage, which is more economical. The boat made of welded tungsten is airtight.

    6. Shortcoming of Welding Tungstenn Boat:

    Since the welded tungsten boat is welded by two or more tungsten plates, it cannot be made into a tungsten boat at one time, so the preparation time will be relatively long.
