    1~20mm Molybdenum Rhenium Alloy Rods For Aerospace Industry

    Ask Lasest Price
    Brand Name : PRM
    Model Number : Mo-Re
    Certification : ISO9001
    Price : $80~300/kg
    Payment Terms : T/T
    Supply Ability : 2000kgs/month
    Delivery Time : 7~10 work days
    MOQ : 1kg
    • Product Details
    • Company Profile

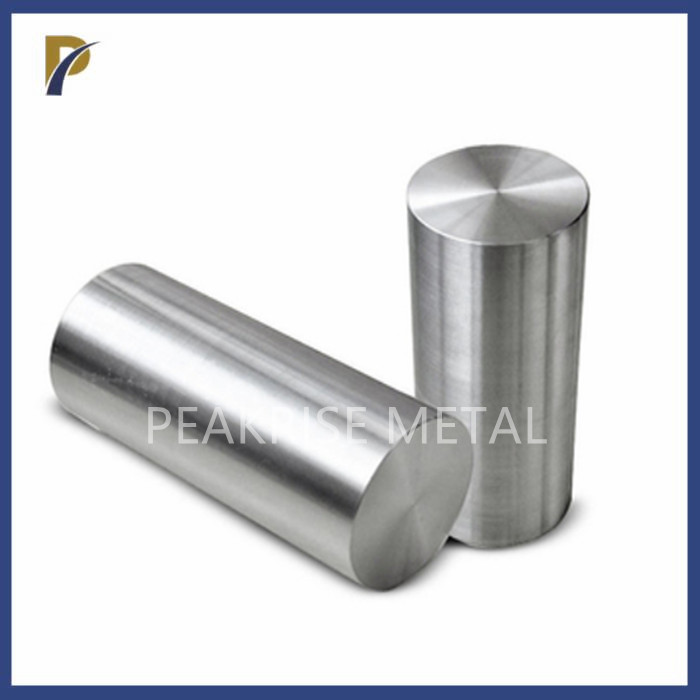

    1~20mm Molybdenum Rhenium Alloy Rods For Aerospace Industry

    Molybdenum-Rhenium Alloy Rods For The Aerospace Industry


    1. Description of Molybdenum Alloy Rod For Aerospace Industry:


    Molybdenum-rhenium alloy rod is an alloy composed of metal molybdenum as the base element and alloying element rhenium. The alloy exhibits a rhenium effect that improves plasticity, and the rhenium content in the alloy is generally 11% to 50% (mass fraction).


    Both molybdenum and rhenium are refractory metals. Combining the two components, the molybdenum-rhenium alloy has the high temperature physical properties of rhenium, the good mechanical properties of molybdenum, and the inherent excellent properties of molybdenum-rhenium alloy.


    The rolling deformation can reach 90%. Molybdenum can be added with 47.5% or 41% rhenium to form a molybdenum-rhenium alloy (nominal composition of 50%Mo+50%Re), which greatly improves its ductility, weldability and formability.

    Molybdenum-Rhenium alloys retain good ductility even after high temperatures.


    2. Size of Molybdenum Rhenium Alloy Rod For Aerospace Industry:


    Product NameMain ElementMain Specifications (mm)
    Molybdenum Rhenium alloy wire

    Mo-20%Re

    Mo-41%Re

    Mo-44.5%Re

    Mo-47.5%Re

    Φ0.1,Φ0.2,Φ0.25,

    Φ0.3,Φ0.35,Φ0.5

    Molybdenum Rhenium alloy rodΦ1~Φ20×L
    Molybdenum Rhenium alloy sheet0.2min.×(10~350) ×600max.
    Molybdenum Rhenium alloy foil0.04min.×100×L

    For other specifications, please contact us for consultation.



    3. Applictaion of Molybdenum Rhenium Alloy Rod For Aerospace Industry:


    Aerospace components: Molybdenum-rhenium alloys rods are used in high-temperature components and temperature measurement systems, structural materials, space reactor heating tubes, etc. in the aerospace field.


    Electronics industry: electronic probes, targets.


    Semiconductor industry: molybdenum-rhenium alloys rods are used in high-temperature parts and thermocouple wires in equipment used in the semiconductor industry.


    Industrial high temperature furnace refractory parts.


    4. Common Production Process of Molybdenum Rhenium Alloy Rod For Aerospace Industry:


    Molybdenum powder + rhenium content - mixed -> molybdenum-rhenium alloy mixed powder - pre-sintered -> molybdenum-rhenium alloy pre-sintered ingot - sintered -> molybdenum-rhenium alloy sintered ingot.
