    3mm Tungsten Molybdenum Alloy Target For Solar Battery And LED Semiconductors

    Ask Lasest Price
    Brand Name : PRM
    Model Number : custom
    Certification : ISO9001
    Price : $50~150/kg
    Payment Terms : T/T
    Supply Ability : 2000kgs/month
    Delivery Time : 7~10 work days
    • Product Details
    • Company Profile

    3mm Tungsten Molybdenum Alloy Target For Solar Battery And LED Semiconductors

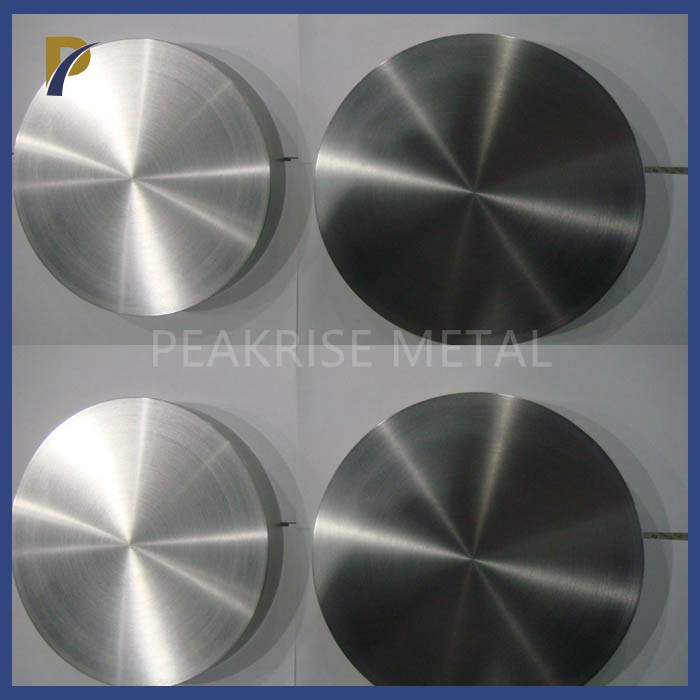

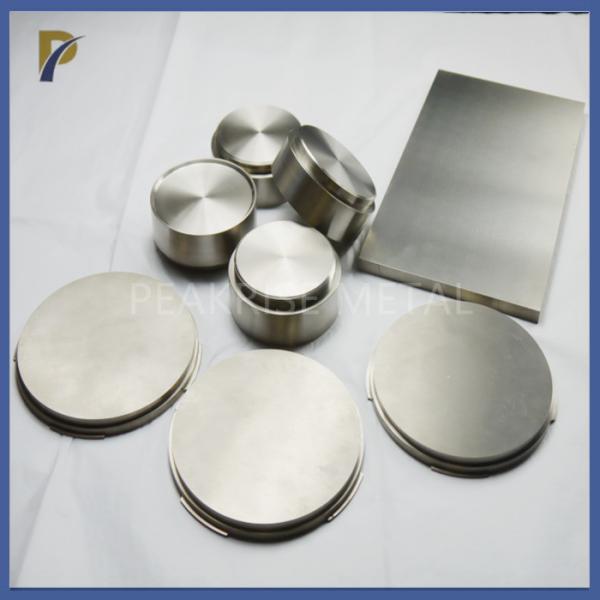

    3mm Thickness Tungsten-Molybdenum Alloy Target For Solar Battery And LED Semiconductors


    1. Description Of Tungsten Molybdenum Alloy Targer For Solar Battery:

    Tungsten-molybdenum alloy plate target is a high-purity, high-strength target material, mainly composed of tungsten and molybdenum. It has excellent corrosion resistance, high temperature stability, high density and good mechanical properties, making it an ideal material for the preparation of high-quality thin film materials and electronic components.

    2. Size Of Tungsten Molybdenum Alloy Targer For Solar Battery:

    Tungsten-molybdenum alloy plate target is usually made by hot isostatic pressing or cold isostatic pressing, and its size can be customized according to customer needs.

    Common Size:
    diameter 50mm,
    thickness 3mm, etc.

    Board targets of different specifications can also be customized according to different application requirements.


    3mm Tungsten Molybdenum Alloy Target For Solar Battery And LED Semiconductors3mm Tungsten Molybdenum Alloy Target For Solar Battery And LED Semiconductors

    3. Chemical of ungsten Molybdenum Alloy Targer For Solar Battery:


    Quantitative analysis
    ElementWMoFeSiCaMgPCOAl
    Concentration(%)30700.0010.0020.00060.00060.0020.0030.0030.004


    The density of tungsten-molybdenum alloy plate target is generally above 9.5 g/cm³, the impurity content is less than 0.1%, and it can withstand high temperature environment up to 2000°C. In addition, the tungsten-molybdenum alloy plate target also has good corrosion resistance and can be used stably for a long time in oxidizing, reducing and inert atmospheres.

    4. Application of ungsten Molybdenum Alloy Targer For Solar Battery:

    In terms of use, tungsten-molybdenum alloy plate targets are widely used in semiconductors, coatings, solar cells, LEDs and other fields. In the field of semiconductors, it is used as a target for preparing high-quality, high-efficiency thin film materials; in the field of coatings, it can be used to prepare surface coatings with high hardness and high wear resistance; in the field of solar cells, it can be used to prepare High-efficiency, high-stability solar cells; in the LED field, it can be used to prepare high-brightness, high-color-purity LED materials.

    In conclusion, tungsten-molybdenum alloy plate target is an important material with broad application prospects. With the development of various advanced technologies, its uses and specifications will be further expanded and optimized, bringing more development opportunities for various industries.
