    Powder Metallurgy Molybdenum Copper Composite Dia15mm Rod Sheet Plate

    Ask Lasest Price
    Brand Name : PRM
    Model Number : custom
    Certification : ISO9001
    Price : $50~80/kg
    Payment Terms : T/T
    Supply Ability : 2000kgs/month
    Delivery Time : 7~10 work days
    • Product Details
    • Company Profile

    Powder Metallurgy Molybdenum Copper Composite Dia15mm Rod Sheet Plate

    Molybdenum Copper Composite Material Dia15mm Rod Sheet Plate For Instrumentation Component Material


    1. Description Of Molybdenum Copper Composite Material:


    The molybdenum-copper composite material (alloy) has high density (≥99%), and the molybdenum content can be adjusted arbitrarily. The alloy has good electrical and thermal conductivity, low adjustable thermal expansion coefficient, non-magnetic and other physical properties, and has special high temperature performance, low gas content and good air tightness, as well as good machinability and weldability. Molybdenum-copper alloys have been widely used in electrical alloys for high-voltage vacuum switches, heat sink materials for microelectronic packaging, and instrumentation components.


    2. Specification Of Molybdenum Copper Composite Material:


    Roddia2~100mm * Length <1500mm
    Sheetthickness 0.5~10mm*width 50~500mm*Length 50~1000mm
    Special partsas per customer drawing


    3.Technical Parameters Of Molybdenum Copper Composite Material:


    Grade

    Mo content

    wt%

    Density

    g/cm³

    Thermal conductivity

    W/m-K

    Thermal expansion coefficient

    10-6/K

    Conductivity

    IACA%

    Hardness

    HV

    MoCu5050±29.54250~26811.3>55140
    MoCu4060±29.62216~24810.1>55156
    MoCu3070±29.72170~2058.4>45172
    MoCu2080±29.85160~1907.3>40225

    Corrosion resistance: acid resistance, alkali resistance, salt water corrosion resistance

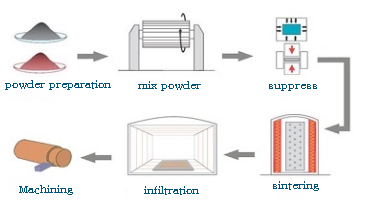

    4.Process craft Of Molybdenum Copper Composite Material:

    Using powder metallurgy technology, the production of molybdenum-copper alloy is completed in strict accordance with ISO 9001 and GJB 9001C quality standards, and the products fully meet the requirements of structural materials for electric vacuum devices.


    Molybdenum-copper series alloy bars and thick plates can be produced by isostatic pressing + infiltration technology, various plates, foils and their parts can be produced by precision rolling technology, and various grades of molybdenum can be provided for domestic and foreign users Copper alloy technology has reached the domestic and international advanced level.

    5.Advantage Of Molybdenum Copper Composite Material:


    High strength: The tensile strength of molybdenum-copper composite material is higher than that of tungsten or copper alone, and it has good durability and stability.


    High thermal conductivity: Molybdenum-copper composite materials have good thermal conductivity, can effectively diffuse and disperse heat, and are suitable for high-temperature electronic devices and other fields.


    Corrosion resistance: Molybdenum-copper composite materials have excellent corrosion resistance and can be used stably for a long time in corrosive environments such as acid, alkali, and salt water.


    Good machinability: molybdenum-copper composite materials can be processed by cold cutting, hot cutting, drilling, welding, etc., and have good processing performance and formability.


    Powder Metallurgy Molybdenum Copper Composite Dia15mm Rod Sheet PlatePowder Metallurgy Molybdenum Copper Composite Dia15mm Rod Sheet Plate


    6. Application Of Molybdenum Copper Composite Material:


    High-temperature electronic devices: Molybdenum-copper composite materials can be used to manufacture high-power LED radiators, high-frequency inductors, high-temperature electronic tubes and other electronic devices.


    Aerospace field: Molybdenum-copper composite materials can be used to manufacture aero-engine parts, missile parts, satellite parts, etc.
    Other fields: Molybdenum-copper composite materials can also be used to manufacture X-ray tubes, semiconductor packaging substrates, vacuum devices, etc.
