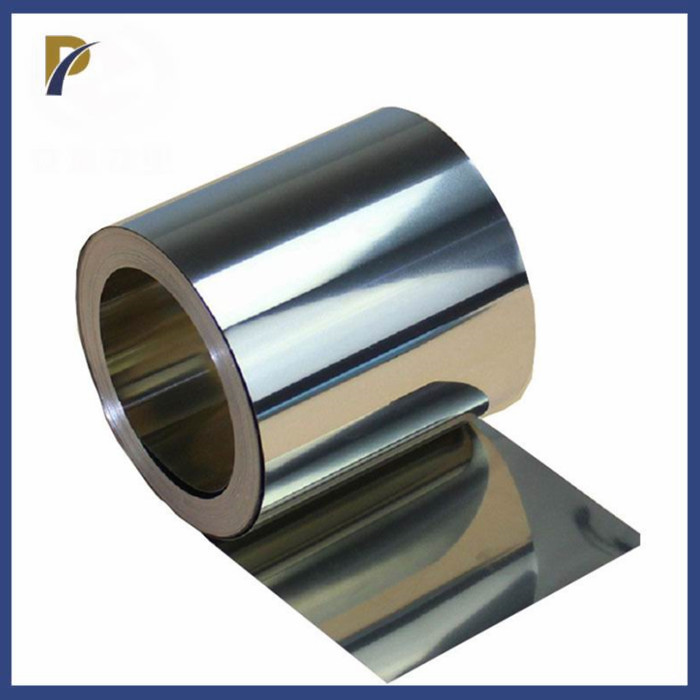

    0.05mm Thickness Bright Surface Niobium Foil RO4200 Nb1 Nb2 C103

    Ask Lasest Price
    Brand Name : PRM
    Model Number : custom
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : T/T
    Supply Ability : 2000kgs/month
    Delivery Time : 7~10days
    • Product Details
    • Company Profile

    0.05mm Thickness Bright Surface Niobium Foil RO4200 Nb1 Nb2 C103

    RO4200 RO4210 Nb-Zr Niobium Foil


    1. Description of RO4200 Nb-Zr Niobium Foil:


    Name: Niobium foil

    Thickness: min.0.02mm

    Width: max.300mm

    Grade:RO4200,RO4210,Nb1,Nb2,Nb-Zr,C103

    Surface: Bright

    Standard: ASTM B393

    Delivery status: Annealed

    Appearance:No pitting, dents, scratches, roller marks and other defects.


    Chemical Composition:


    GradeRO4200RO4210Nb1Nb2NbZr1C-103

    Content

    (wt%)

    Zr0.020.020.020.020.8~1.20.7
    Ti0.020.030.0020.0050.020.7~1.3
    C0.010.010.010.020.010.015
    N0.010.010.0150.050.010.015
    O0.0150.0250.0150.0250.0150.023
    H0.00150.00150.0010.0050.00150.002
    Ta0.10.30.100.250.100.5
    Fe0.0050.010.0050.030.005-
    Si0.0050.0050.0050.020.005-
    W0.030.050.030.050.030.5
    Ni0.0050.0050.0050.010.005-
    Mo0.010.020.0100.050.01-
    Cr0.002-0.0020.010.002-
    Hf0.020.02---9.0~11.0
    NbRemainRemainRemainRemainRemainRemain


    2. Tolerance of Niobium Foil:



    Thickness

    (mm)

    Thickness Tolerance (mm)

    Width

    (mm)

    Width Tolerance

    (mm)

    Length

    (mm)

    Length Tolerance

    (mm)

    GradeGrade
    <0.1±0.005±0.00850-150±2.0100-20000±2.0
    0.1~0.2±0.015±0.0250~240±2.0100~20000±2.0
    0.2-0.3±0.020±0.0350-650±2.0100-6000±2.0
    0.3-0.5±0.030±0.0450-650±2.0100-6000±2.0
    0.5-0.8±0.040±0.0650-650±2.050-6000±2.0
    0.8-1.0±0.060±0.0850-650±2.050-6000±2.0
    1.0-1.5±0.080±0.1050-650±3.050-6000±4.0
    1.5-2.0±0.120±0.1450-650±3.050-4000±4.0
    2.0-3.0±0.160±0.1850-650±5.050-4000±5.0
    3.0-4.0±0.180±0.2050-650±5.050-3000±5.0
    4.0-6.0±0.200±0.2450-650±5.050-2000±5.0

    3. Processing technology of Niobium Foil:



    4.Application of Niobium Foil:


    Niobium foil is widely used in aerospace, electronics, chemical industry, medical equipment and other fields.

    In the field of aerospace, niobium foil is often used in the manufacture of burners, turbine blades, heat conduction fins, etc.


    In the field of electronics, niobium foil can be used to make capacitors, resistors, electrodes, etc.

    In the chemical industry, niobium foil is often used in the manufacture of corrosion-resistant equipment, reactors, etc.


    In the field of medical devices, niobium foil is often used in the manufacture of implantable medical devices, artificial joints, etc.
