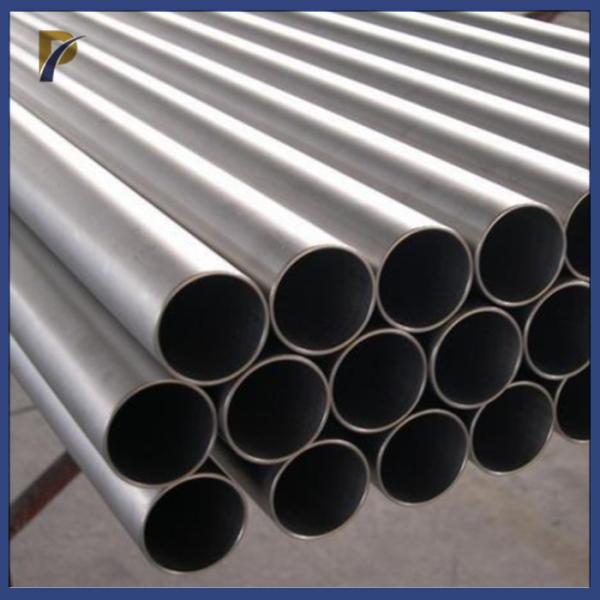

    ASTM B338 Gr 2 Titanium Tube Pickled Surface Treatment Titanium Seamless Pipe

    Ask Lasest Price
    Brand Name : PRM
    Model Number : Custom
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : T/T
    Supply Ability : 10ton/month
    Delivery Time : 7~10days
    • Product Details
    • Company Profile

    ASTM B338 Gr 2 Titanium Tube Pickled Surface Treatment Titanium Seamless Pipe

    ASTM B B338 Gr2 Titanium Seamless Pipe


    1. Information Of ASTM B338 Gr2 Titanium Seamless Pipe:


    Seamless titanium pipes are weld-free pipes made of titanium. Among titanium materials, Gr1 ,Gr2 is the most popular.


    Product Description:seamless titanium pipe
    StandardASTM B338
    MaterialGr1,Gr2,Gr5,Gr7,Gr9 etc.
    Density4.50 g/cm³
    Surface treatmentPickled
    Outer Diameter Range (mm)φ5~60.3
    Wall Thickness (mm)0.5~5.0

    2. Tolerance of ASTM B338 Gr2 Titanium Seamless Pipe:


    Outer diameter, mm
    Tolerances ( mm)
    Wall thickness tolerance (%)
    3.2≤OD≤38
    +0.397/-0.794
    ±12.5
    38<OD≤102
    +0.794/-0.794
    ±12.5
    102<OD≤203
    +1.588/-0.794
    ±12.5
    203<OD≤432
    +2.382/-0.794
    ±12.5

    3.Chemical Content of ASTM B338 Gr2 Titanium Seamless Pipe:


    ElementComposition,%
    Grade1Grade2Grade3Grade4Grade5Grade6Grade7Grade9Grade11Grade12
    N max0.030.030.050.050.050.030.030.030.030.03
    C max0.080.080.080.080.080.080.080.080.080.08
    H max0.050.0150.0150.0150.0150.0150.0150.0150.0150.015
    Fe max0.20.30.30.50.40.30.50.250.20.3
    O max0.180.250.350.40.20.20.250.150.180.25
    Al5.5-6.754.0-4.62.5-3.5
    V3.5-4.52.0-3.0

    Titanium tubes are supplied in straight or U-bent tubes. Titanium spiral tubes and titanium capillary tubes are available upon request. Length: 4000 mm; 6000 mm; 12000 mm; Available in a variety of lengths and chopped cuts. Maximum development length: 20 m.


    Inspection & Testing: Ultrasonic Testing (UT), Electrical Non-Destructive Testing (ET), Flaring Testing, Hydrostatic Testing, Flattening Testing, Visual Surface Testing, Dimensional Testing, Tensile Performance Testing, and Chemical Element Analysis.
