    ASTM B338 ASTM B862 Large Diameter Welded Titanium Tube For Chemical Industry

    Ask Lasest Price
    Brand Name : PRM
    Model Number : Custom
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : T/T
    Supply Ability : 20ton/month
    Delivery Time : 7~10days
    • Product Details
    • Company Profile

    ASTM B338 ASTM B862 Large Diameter Welded Titanium Tube For Chemical Industry

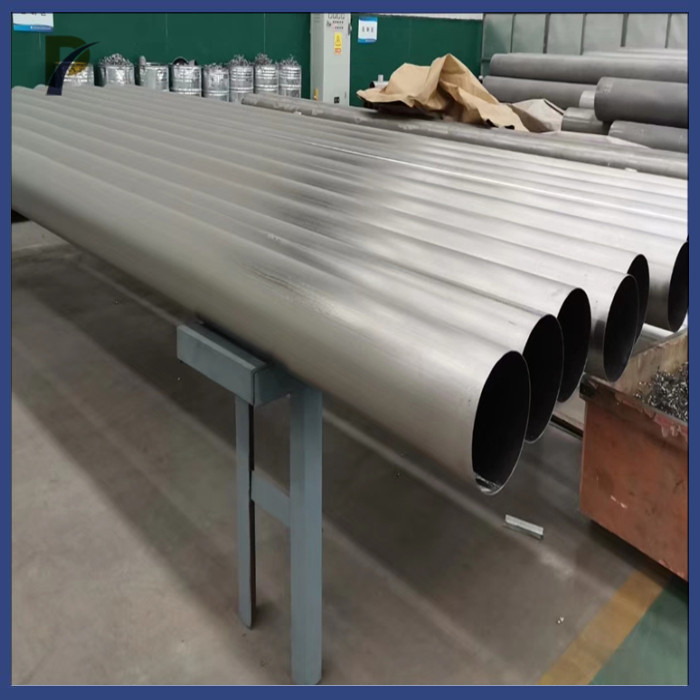

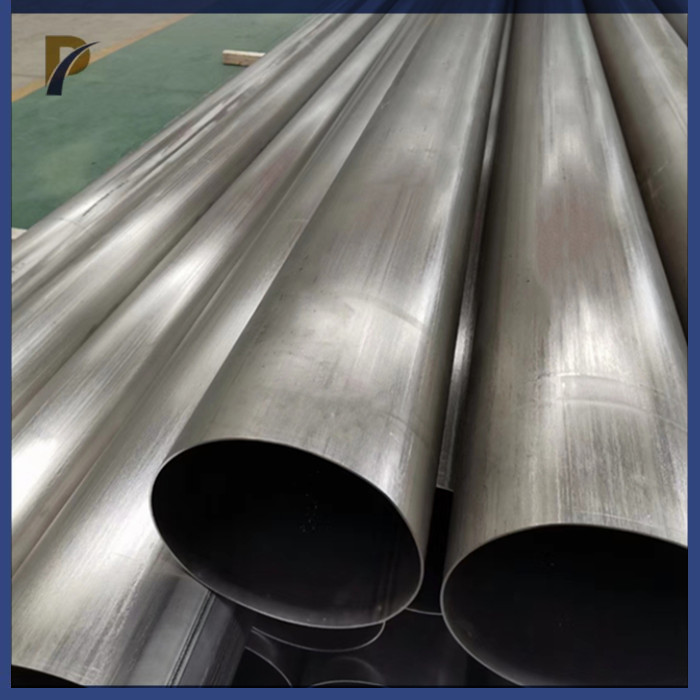

    Large Diameter Welded Titanium Tube


    1. Information Of Welded Titanium Tube:


    Product NameSpecificationStandardInspectionGrade

    Ti & Ti alloy precision

    welded tube

    Outdiameter: 19~51mm

    Wall thickness: 0.5~2.0mm

    Length: customer request

    ASTM B337

    ASTM B338

    ASTM B861

    ASTM B862

    JIS H4631

    JIS H4635


    or Customer requested

    Eddy current flaw detection


    Hydrostatictest

    Gr1,Gr2,Gr5,Gr7,

    Gr9,Gr11,Gr23 etc.

    Outdiameter: 51~133mm

    Wall thickness: 2.0~4.0mm

    Length: customer request

    Outdiameter: 133~219mm

    Wall thickness: 2.0~6.0mm

    Length: customer request

    Outdiameter: 219~325mm

    Wall thickness: 3.0~8.0mm

    Length: customer request

    Ti & Ti alloy continuous tube

    Outdiameter: ≤ 51mm

    Wall thickness: 0.5~3.0mm

    Length: ≤ 5000 meters

    Eddy current flaw detection


    2. Features of Titanium welded tube:


    * High strength

    * Lightweight

    * Preservative

    * Good thermal performance

    * Biocompatibility


    3. Mechanical property of the Titanium tube in the room temperature:


    Model NumberStatusTensile Strength /MpaStretch of Specified Residual Force/Mpa

    Elongation/%

    (L0=50mm)

    GR1M280-420more than 170more than 24
    GR2370-530more than 250more than 20
    GR3440-620more than 320more than 18
    GR7370-530more than 250more than 20
    GR12more than 440__more than 18

    4. Application Of Titanium Welded Tube :


    Titanium welded tube can be used for :


    Condenser of powder station;

    Seawater desalination;

    Petroleum industry;

    Chemical industry;

    Medical equipment;

    Shipbuilding industry;

    Paper making;

    Food processing;

    Fluid conveying pipe;

    Automobile exhaust pipe and so on.


    Company Profile:


    Shaanxi Peakrise Metal Co., Ltd. is an rich experienced tungsten,molybdenum, tantalum, niobium, titanium,zirconium,nickel non-ferrous metal production enterprise,main products include tungsten-copper alloy, molybdenum-copper alloy, tungsten-molybdenum alloy, high specific gravity tungsten alloy, tantalum alloy,niobium alloy,titanium alloy and other more than 100 kinds of products.we have more than 13 years of rich production experience and export experience, and solve related import and export problems for customers. , one-stop solution to all difficulties.Products are exported to Taiwan, Ukraine, South Korea, the United States, Australia, Germany, Iran and other countries, and have established long-term good cooperative relations with customers. Our products are highly recognized and evaluated by customers.
